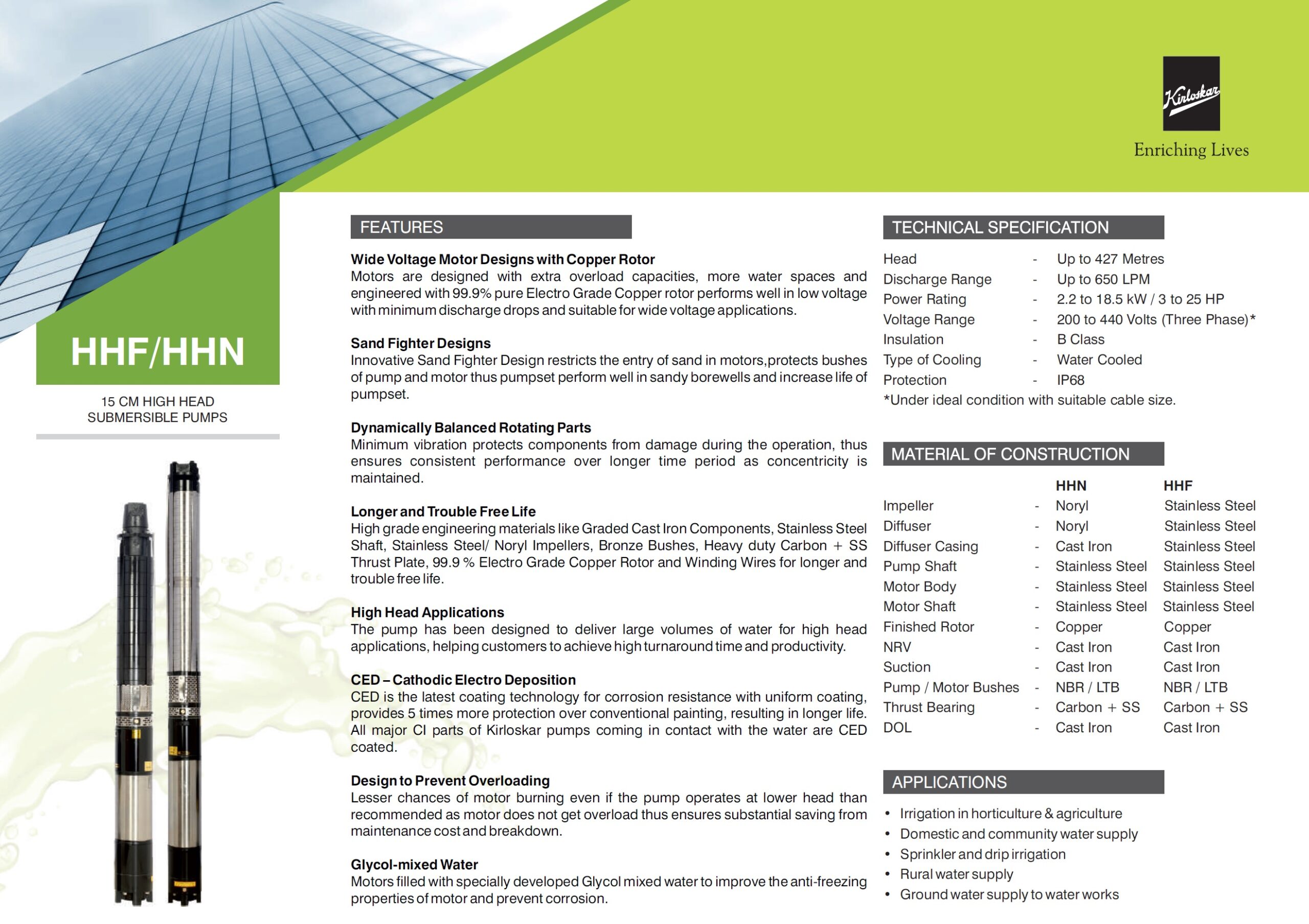

15 CM HIGH HEAD SUBMERSIBLE PUMPS | HHF/HHN

Manufactured by Kirloskar Brothers Limited

High Head Borewell Submersible Pump, 100HHF/HHN | Three Phase | 415 Volts.

Up to 427 Metres
Up to 650 LPM
2.2 to 18.5 kW / 3 to 25 HP
200 to 440 Volts ( Three Phase)*
IP68
B Class
Water Cooled
10°C to 45°C
40°C

Send Enquiry

Applications

  • Irrigation in horticulture & agriculture
  • Domestic and community water supply
  • Sprinkler and drip irrigation
  • Rural water supply
  • Ground water supply to water works
HHN-Norly | HHF -Stainless Steel
HHN-Norly | HHF -Stainless Steel
HHN-Cast Iron | HHF -Stainless Steel
HHN-Stainless Steel | HHF -Stainless Steel
HHN-Stainless Steel | HHF -Stainless Steel
HHN-Stainless Steel | HHF -Stainless Steel
HHN-Copper | HHF -Copper
HHN-Cast Iron | HHF -Cast Iron
HHN-Cast Iron | HHF -Cast Iron
HHN-NBR / LTB | HHF-NBR / LTB
HHN-Carbon+SS | HHF -Carbon+SS
HHN-Cast Iron | HHF -Cast Iron

Wide Voltage Motor Designs with Copper Rotor
Motors are designed with extra overload capacities, more water spaces and
engineered with 99.9% pure Electro Grade Copper rotor performs well in low voltage
with minimum discharge drops and suitable for wide voltage applications.
Sand Fighter Designs
Innovative Sand Fighter Design restricts the entry of sand in motors,protects bushes
of pump and motor thus pumpset perform well in sandy borewells and increase life of
pumpset.
Dynamically Balanced Rotating Parts
Minimum vibration protects components from damage during the operation, thus
ensures consistent performance over longer time period as concentricity is
maintained.
Longer and Trouble Free Life
High grade engineering materials like Graded Cast Iron Components, Stainless Steel
Shaft, Stainless Steel/ Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS
Thrust Plate, 99.9 % Electro Grade Copper Rotor and Winding Wires for longer and
trouble free life.
High Head Applications
The pump has been designed to deliver large volumes of water for high head
applications, helping customers to achieve high turnaround time and productivity.
CED – Cathodic Electro Deposition
CED is the latest coating technology for corrosion resistance with uniform coating,
provides 5 times more protection over conventional painting, resulting in longer life.
All major CI parts of Kirloskar pumps coming in contact with the water are CED
coated.
Design to Prevent Overloading
Lesser chances of motor burning even if the pump operates at lower head than
recommended as motor does not get overload thus ensures substantial saving from
maintenance cost and breakdown.
Glycol-mixed Water
Motors filled with specially developed Glycol mixed water to improve the anti-freezing
properties of motor and prevent corrosion.
