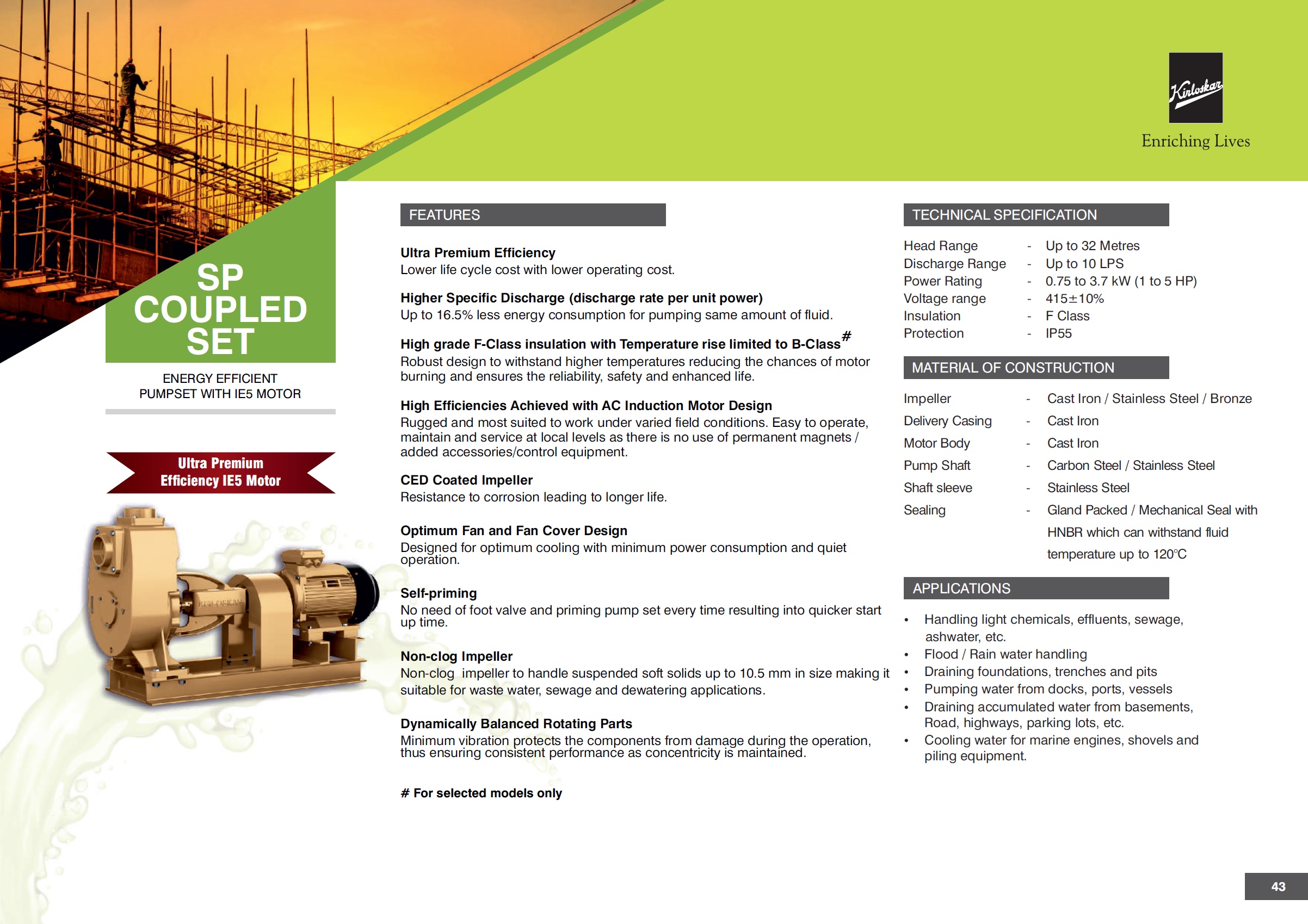

Energy Efficient Pumpset with IE5/EE5 Motor | SP Coupled Set

Manufactured by Kirloskar Brothers Limited

Dewatering (Self-priming) Pump| SP Coupled Set | EE5 Motor.

Up to 32 Metres
Up to 10 LPS
0.75 to 3.7 kW (1 to 5 HP)
415±10%
IP55
10°C to 120°C
40°C

Send Enquiry

Applications

  • Handling light chemicals, effluents, sewage, ashwater, etc.
  • Flood / Rain water handling
  • Draining foundations, trenches and pits
  • Pumping water from docks, ports, vessels
  • Draining accumulated water from basements, Road, highways, parking lots, etc.
  • Cooling water for marine engines, shovels and piling equipment.
Cast Iron / Stainless Steel / Bronze
Cast Iron
Cast Iron
Carbon Steel / Stainless Steel
Stainless Steel
Gland Packed / Mechanical Seal with HNBR which can withstand fluid temperature up to 120°C

Ultra Premium Efficiency
Lower life cycle cost with lower operating cost.
Higher Specific Discharge (discharge rate per unit power)
Up to 16.5% less energy consumption for pumping same amount of fluid.
High grade F-Class insulation with Temperature rise limited to B-Class#
Robust design to withstand higher temperatures reducing the chances of motor
burning and ensures the reliability, safety and enhanced life.
High Efficiencies Achieved with AC Induction Motor Design
Rugged and most suited to work under varied field conditions. Easy to operate,
maintain and service at local levels as there is no use of permanent magnets /
added accessories/control equipment.
CED Coated Impeller
Resistance to corrosion leading to longer life.
Optimum Fan and Fan Cover Design
Designed for optimum cooling with minimum power consumption and quiet
operation.
Self-priming
No need of foot valve and priming pump set every time resulting into quicker start
up time.
Non-clog Impeller
Non-clog impeller to handle suspended soft solids up to 10.5 mm in size making it
suitable for waste water, sewage and dewatering applications.
Dynamically Balanced Rotating Parts
Minimum vibration protects the components from damage during the operation,
thus ensuring consistent performance as concentricity is maintained.
# For selected models only
