Product

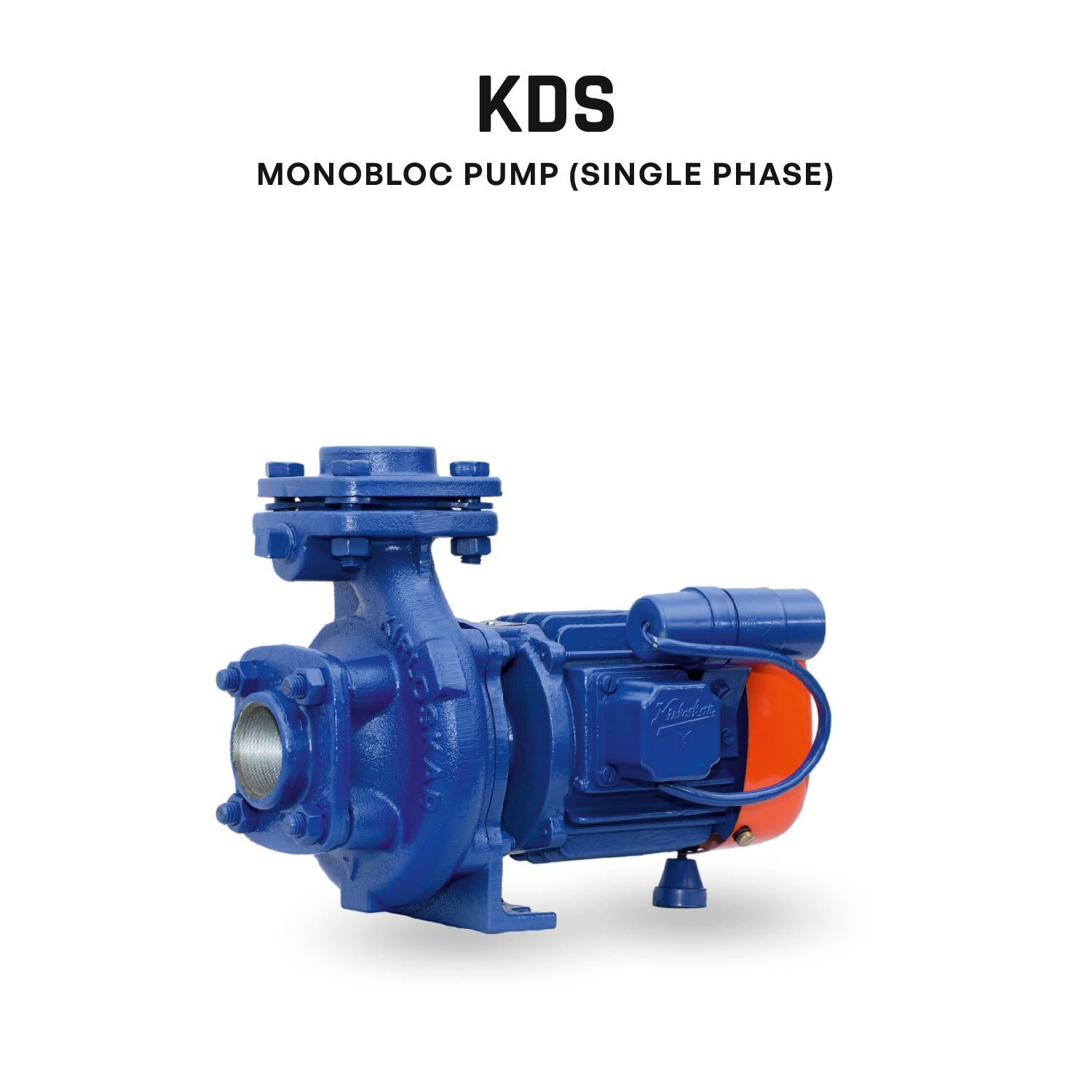

Monobloc Pumps | KDS (Single Phase)

Manufactured by Kirloskar Brothers Limited

Monobloc Pump, KDS , Single Phase, 210 Volts,

Up to 52 Metres
Up to 28 LPS
0.37 to 3.7 kW (0.5 to 5.0 HP)
180 to 240 Volts (Single Phase) 120 to 220 Volts (Low Voltage) 230 to 400 Volts (“P” Series)
B / F Class
IP44

Send Enquiry

Applications

  • Gardening and small farm irrigation
  • Lawn sprinklers
  • Water supply for high rise buildings
  • Domestic and community water supply
  • Water transfer and circulation
Cast Iron/Noryl
Cast Iron
Cast Iron
Carbon Steel
Mechanical Seal
Wide Voltage Design
The motor is designed to withstand wide voltage variation which reduces motor
burning in case of low/high voltage.
Replaceable Wearing Parts
All wearing parts within the pumps are easily accessible and replaceable which
facilitates ease of maintenance thereby extending the life of the pump.
TOP - Thermal Overload Protector
The pump set features a Thermal Overload Protector that protects the motor from
overloading, shielding of the motor and associated circuit from the effects of fault
current
CED – Cathodic Electro Deposition
CED is the latest coating technology for corrosion resistance with uniform coating. It
provides 5 times more protection over conventional painting, resulting in longer life.
All major CI parts of Kirloskar pumps coming in contact with the water are CED
coated.
Automatic Air Release
Automatically releases air when the pump starts ensuring swifter and smoother
operations, thus eliminating the necessity of operating air release cock.
High Efficiency and Energy Saving Design
Innovative design manufactured at state of art plant, delivers optimum efficiency at
lower energy consumption resulting in significant cost savings.
Dynamically Balanced Rotating Parts
Minimum vibration protects components from damage during the operation, thus
ensures consistent performance over longer time period as concentricity is
maintained.
Designed to Prevent Overloading
Lesser chances of motor burning even if the pump operates at lower head than
recommended as motor does not get overload thus ensures substantial saving from
maintenance cost and breakdown.
