VERTICAL MULTI STAGE PUMP | KVM

Manufactured by Kirloskar Brothers Limited

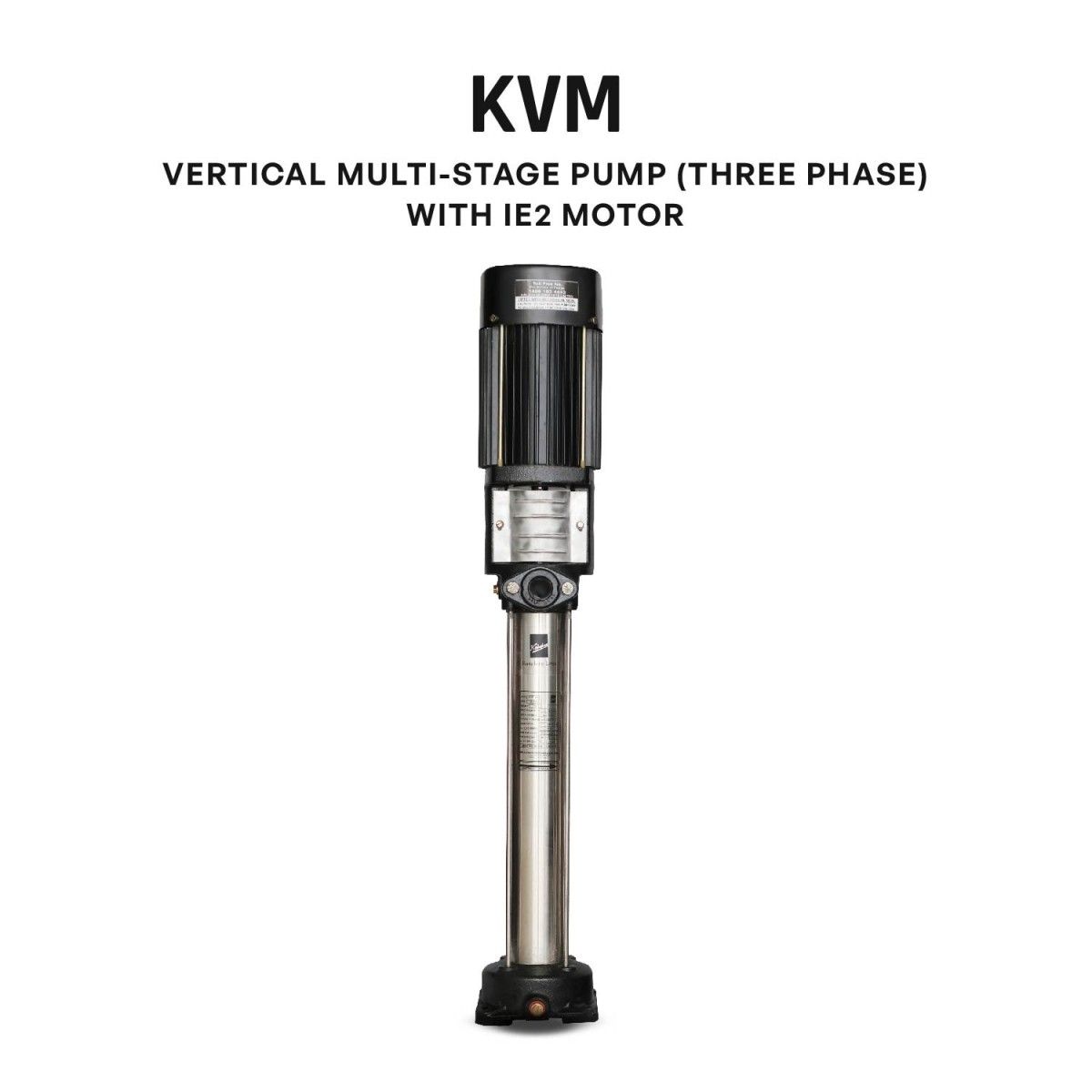

Vertical Multi-stage Pump, KVM, Three Phase, 415 Volts.

Up to 181 Metres
Up to 25 m /hr
1.1 to 4.5 kW (1.5 to 6 HP)
180 to 240 Volts (Single Phase) 3 300 to 440 Volts (KVM 2 m /hr – 3 phase) 3 350 to 440 Volts (KVM 4 m /hr – 3 phase) 3 370 to 440 Volts (KVM 10 & 15 m /hr - 3 phase IE2)
F Class
IP44/ IP55
5 - 8.5

Send Enquiry

Applications

  • RO Plant
  • Pressure boosting and lifting water in apartments and bungalows
  • Irrigation
  • Firefighting systems and washing systems
  • Air conditioners, cooling system and industrial cleaning
High Grade Engineering Polymer
High Grade Engineering Polymer
Cast Iron
Cast Iron
Stainless Steel

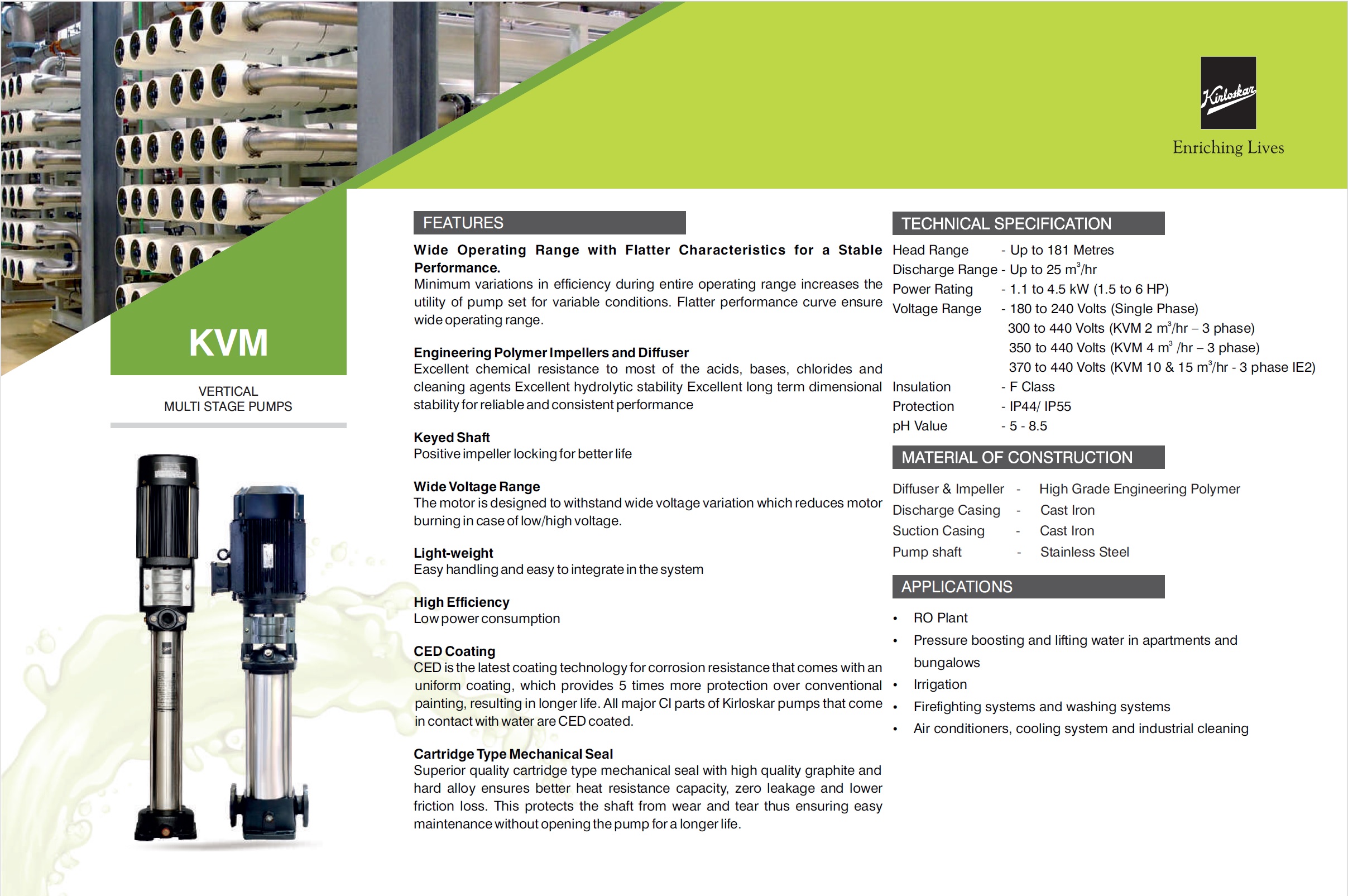

FEATURES

Wide Operating Range with Flatter Characteristics for a Stable
Performance.
Minimum variations in efficiency during entire operating range increases the
utility of pump set for variable conditions. Flatter performance curve ensure
wide operating range.
Engineering Polymer Impellers and Diffuser
Excellent chemical resistance to most of the acids, bases, chlorides and
cleaning agents Excellent hydrolytic stability Excellent long term dimensional
stability for reliable and consistent performance
Keyed Shaft
Positive impeller locking for better life
Wide Voltage Range
The motor is designed to withstand wide voltage variation which reduces motor
burning in case of low/high voltage.
Light-weight
Easy handling and easy to integrate in the system
High Efficiency
Low power consumption
CED Coating
CED is the latest coating technology for corrosion resistance that comes with an
uniform coating, which provides 5 times more protection over conventional
painting, resulting in longer life. All major CI parts of Kirloskar pumps that come
in contact with water are CED coated.
Cartridge Type Mechanical Seal
Superior quality cartridge type mechanical seal with high quality graphite and
hard alloy ensures better heat resistance capacity, zero leakage and lower
friction loss. This protects the shaft from wear and tear thus ensuring easy
maintenance without opening the pump for a longer life.
