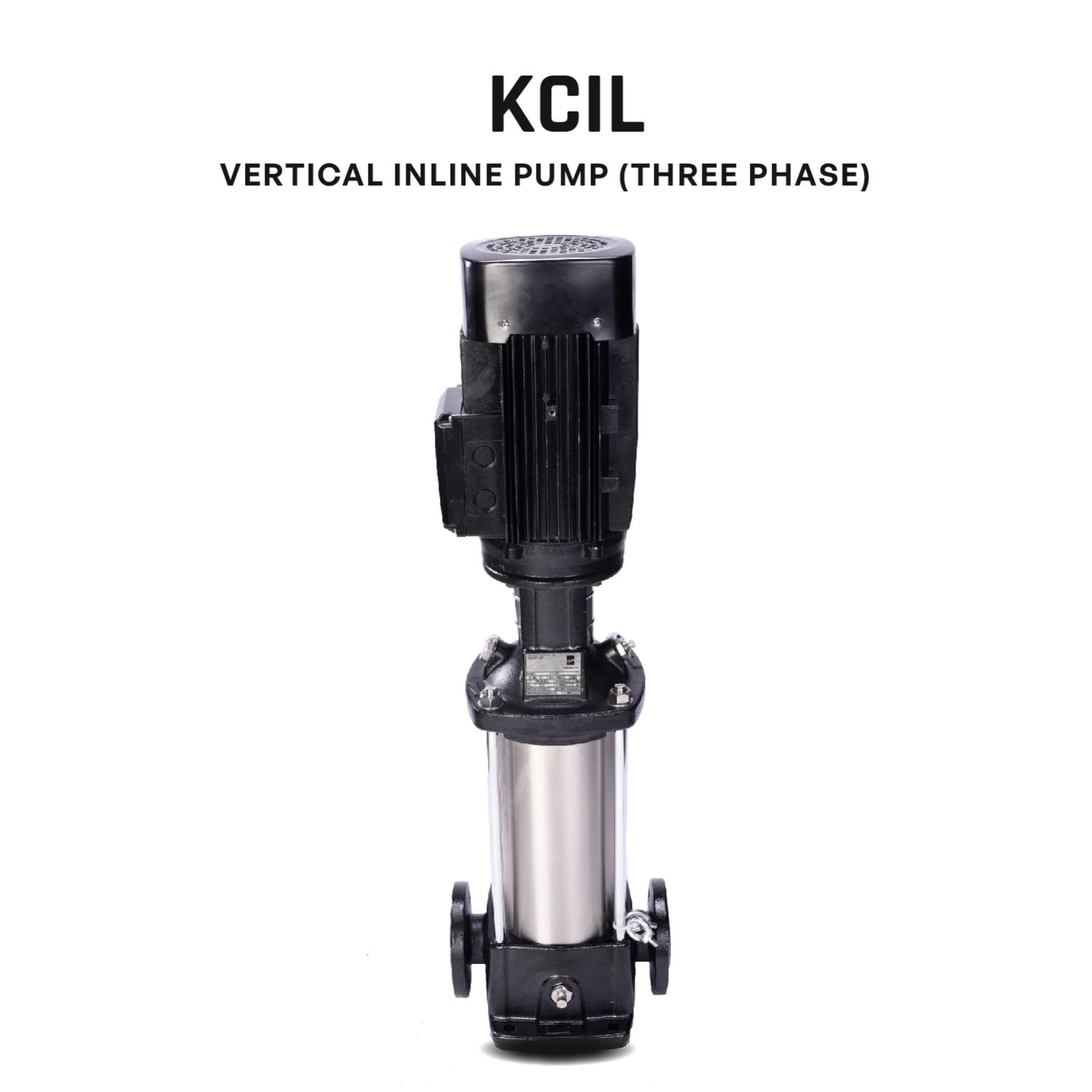

Vertical Multi Stage Inline Pumps | KCIL & KSIL

Manufactured by Kirloskar Brothers Limited

Vertical Inline Pump | KCIL & KSIL | Three Phase | 415 Volts.

Up to 323 Metres
Up to 110 m³/h
0.37 to 45 kW (0.5 to 60 HP)
370 to 440 Volts (Three Phase)
F Class
IP55
-20° C to 120°C
40°C
16 bar (KCIL & KSIL-1 to 5 Series) 25 bar (KSIL & KCIL-10 to 90 Series)
All motors are designed under IE2 specification.

Send Enquiry

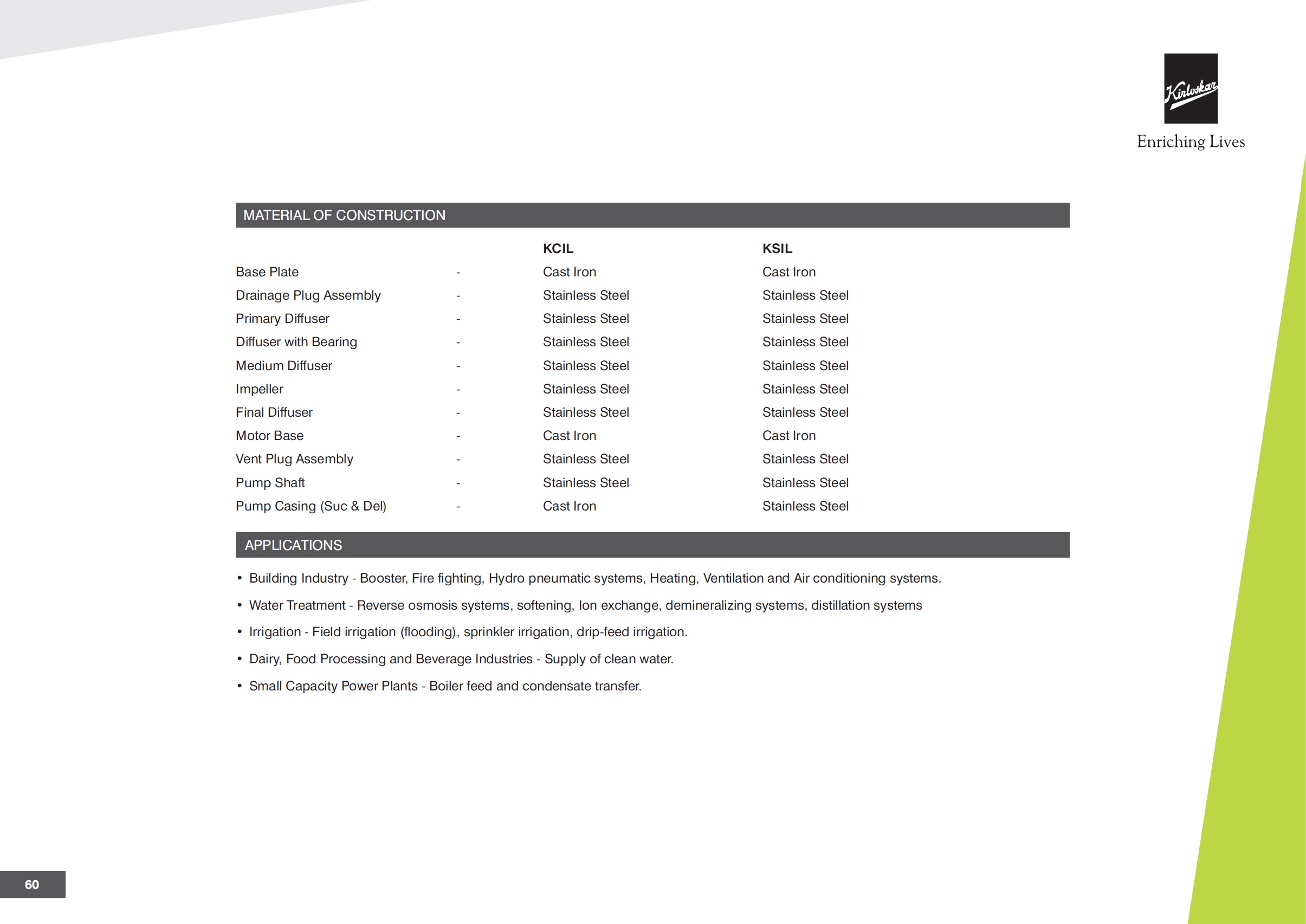

Applications

  • Building Industry – Booster, Fire fighting, Hydro pneumatic systems, Heating, Ventilation and Air conditioning systems.
  • Water Treatment – Reverse osmosis systems, softening, Ion exchange, demineralizing systems, distillation systems
  • Irrigation – Field irrigation (flooding), sprinkler irrigation, drip-feed irrigation
  • Dairy, Food Processing and Beverage Industries – Supply of clean water.
  • Small Capacity Power Plants – Boiler feed and condensate transfer.
Cast Iron
Stainless Steel
Stainless Steel
Stainless Steel
Cast Iron
Stainless Steel

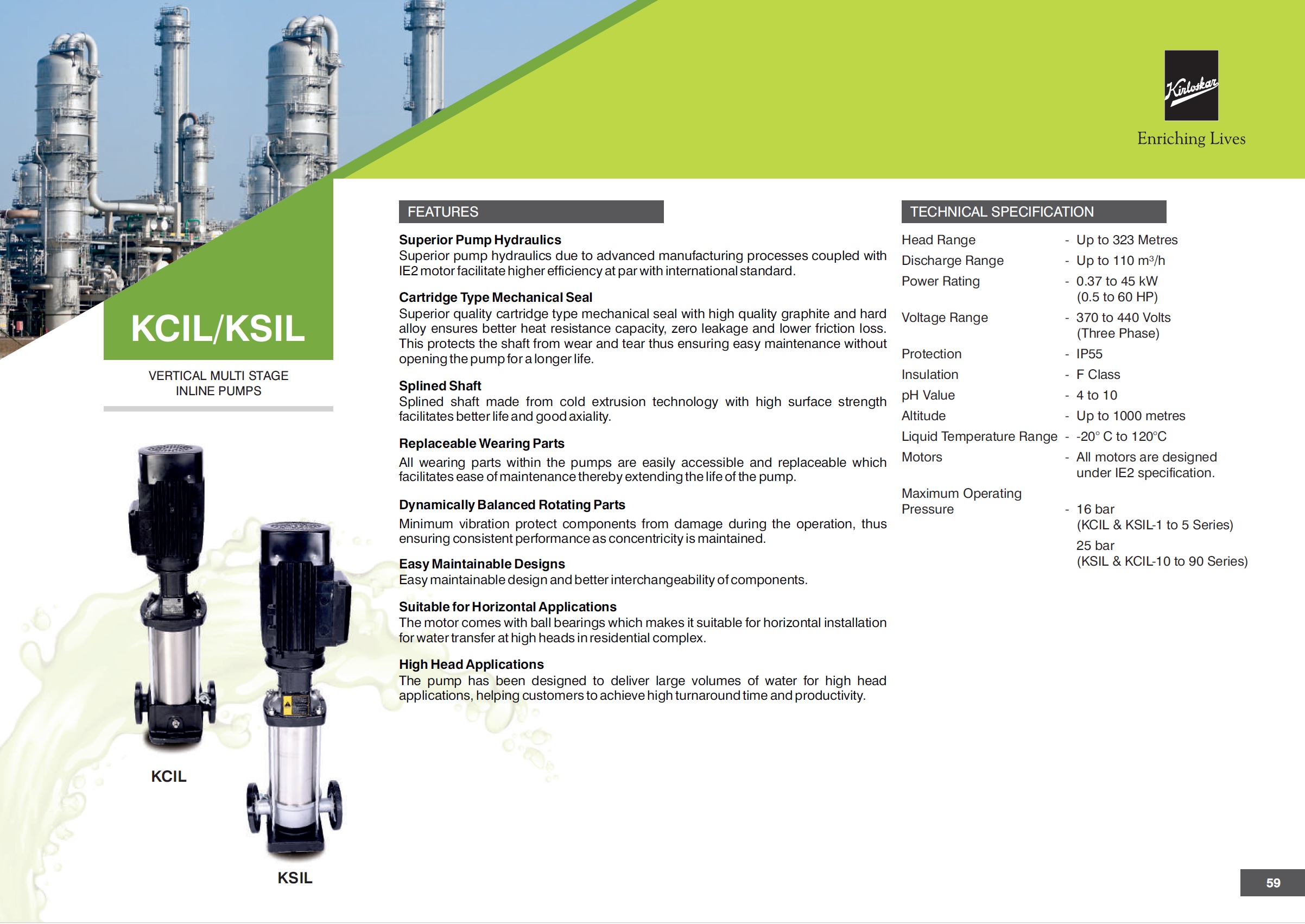

Superior Pump Hydraulics
Superior pump hydraulics due to advanced manufacturing processes coupled with
IE2 motor facilitate higher efficiency at par with international standard.
Cartridge Type Mechanical Seal
Superior quality cartridge type mechanical seal with high quality graphite and hard
alloy ensures better heat resistance capacity, zero leakage and lower friction loss.
This protects the shaft from wear and tear thus ensuring easy maintenance without
opening the pump for a longer life.
Splined Shaft
Splined shaft made from cold extrusion technology with high surface strength
facilitates better life and good axiality.
Replaceable Wearing Parts
All wearing parts within the pumps are easily accessible and replaceable which
facilitates ease of maintenance thereby extending the life of the pump.
Dynamically Balanced Rotating Parts
Minimum vibration protect components from damage during the operation, thus
ensuring consistent performance as concentricity is maintained.
Easy Maintainable Designs
Easy maintainable design and better interchangeability of components.
Suitable for Horizontal Applications
The motor comes with ball bearings which makes it suitable for horizontal installation
for water transfer at high heads in residential complex.
High Head Applications
The pump has been designed to deliver large volumes of water for high head
applications, helping customers to achieve high turnaround time and productivity.
